Rack connections mod. S500N:
675 W CNC Control
In Stock
up to 32 + 32 local digital I / O
up to 128 digital I / O in total via expansion cards
1 Lan port + 1 Optional
2 RS-232 serial ports

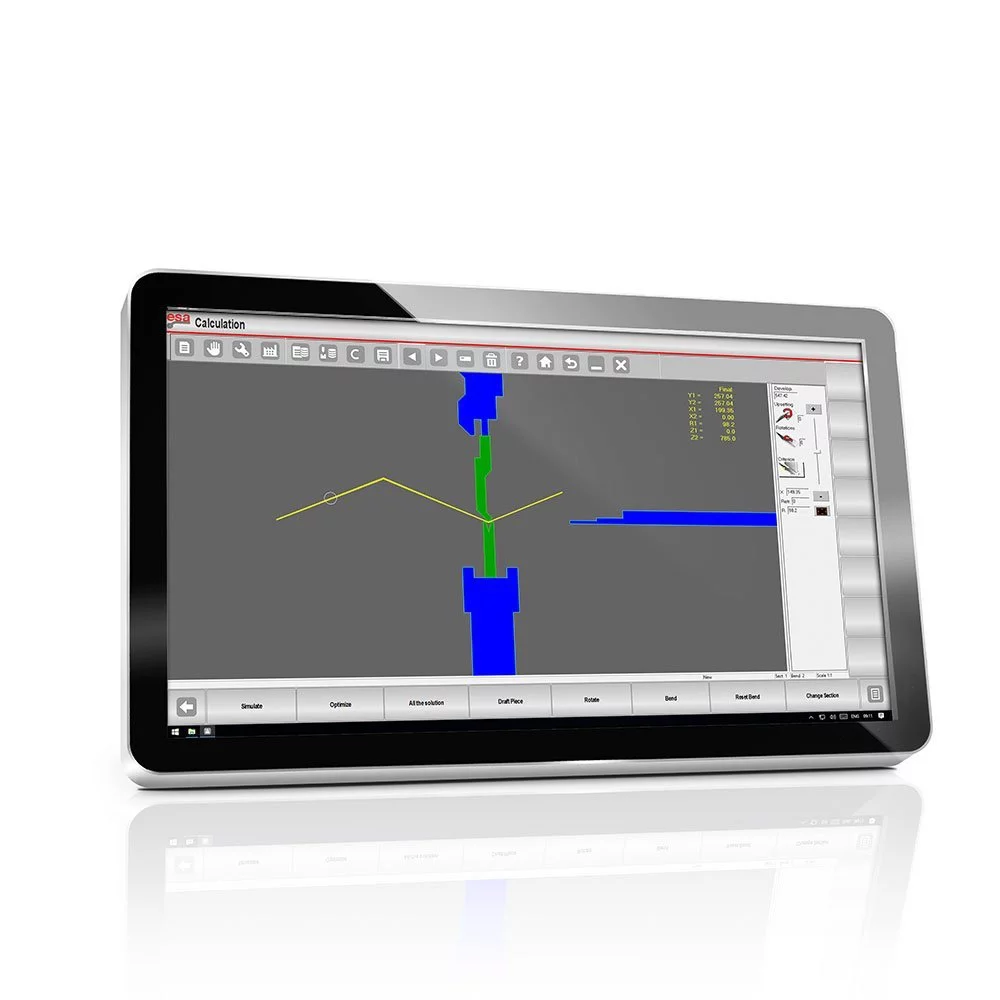

675 W CNC Control by ESAutomation (ESA)
MTL offers the VIS-675W control which is ESAutomation’s top of the range CNC control. Suitable for all applications including sheet metal bending and cutting, wood processing, marble processing and other general purposes.
The VIS-675W includes superior intelligence and maximum reactivity. This industrial integrated PC has 8GB of RAM, and a high power Intel i5 3.2 Ghz CPU and has a windows 10 operating system.
To make an enquiry, click the button at the bottom of the page or call us on 01562 744 873 for more information.
Main Features:
- Resistive 21 ”TFT LCD Full HD Multitouch resistive color screen
- Industrial PC
- 3.2 Ghz Intel I5 CPU
- Windows 10 Iot operating system
- RAM: 8 Gb
- For all applications up to 128 axes
- Advanced HMI and easy learning
- 2 Ethernet ports as standard
- 1 RS-232 serial port
- 4 USB 2.0 ports + 4 USB 3.0 ports
- Available in 25 languages
The S 675 W Control is ideal for a CNC machine retrofit. Save money by changing the control rather than buying a complete new machine.
To make an enquiry, click the button at the bottom of the page or call us on 01562 744 873 for more information.
- up to 32 + 32 local digital I / O
- up to 128 digital I / O in total via expansion cards
- 1 Lan port + 1 Optional
- 2 RS-232 serial ports
- 2 USB 2.0 ports
- 4 analog inputs
- 2 analog output
- 1 CANopen port + 1 Optional
Rack connections mod. S500:
- up to 64 + 64 local digital I / O
- up to 512 digital I / O in total via expansion cards
- 2 LAN ports
- 2 RS-232 / RS422 serial ports
- 2 USB 2.0 ports
- 4 analog inputs
- 1 analogue output
- 2 CANopen ports
- 4 fast inputs 24V PNP
