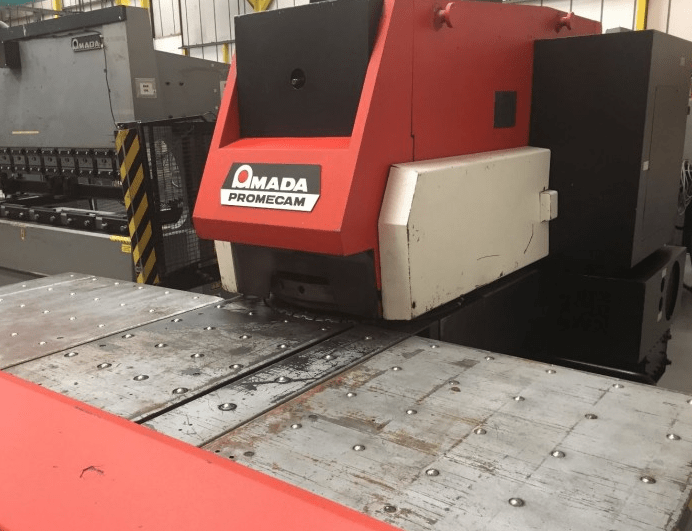

Amada Aries 245 3 CNC Punch Press
| year | 1992 |
| price | POA |
| stock no. | 01760 |
| specification | 20 TONS CAPACITY 19 STATION THICK TURRET 3 AUTO-INDEX 1000 X 1270 CNC PUNCHING MACHINE |
| description | |
| CONTROL | FANUC O4PA WITH RS232C INTERFACE |
| TURRET STYLE | THICK |
| A STATIONS 12.7mm | 9 |
| B STATIONS 31.7mm | 5 |
| D STATIONS 88.9mm | 2 |
| C STATIONS 50.8mmAUTO-INDEX | 1 |
| B STATIONS 31.7mm AUTO-INDEX | 2 |
| MAX TRAVERSE | 1000 X 1270 |
| MAX SHEET SIZE 1 REPRO | 1000 2540 |
| MAX SHEET THICKNESS | 4.5mm MS |
| MAX SHEET WEIGHT | 50 KG |
| MAX FEED SPEED | 40 METRES PER/MIN |
| TURRET SPEED | 20 RPM |
| MAX NIBBLING RATE | 350 HPM |
| MAX HIT RATE 25mm CENTRES | 180 HPM |
| CLUTCH/ BRAKE TYPE | HYDRAULIC |
| AIR PRESSURE | 5kg/cm/2 70 PSI |
| POWER CONSUMPTION | 11KVA |
| WEIGHT | 7500KG |
